Alpha Series 13A Switched Wall Socket – Single Gang BS 1363 Standard Outlet, 86mm x 86mm PC Panel, 250V, High-Durability (≥15,000 Cycles)
- Overview
- Recommended Products
Model Number |
8613S |
Range |
Alpha |
Installation Method |
Screwed |
Lifespan |
≥15, 000 Cycles |
Type |
13A Switched Socket |
Color |
White |
Dimensions (L × W × D) |
86mm x 86mm x 26mm |
Standard (Compliance) |
BS 1363 |
Rated Voltage |
220-250V |
Packaging |
1Pc/Nylon Bag, 10Pcs /Box, 10Boxes/Carton |
Rated Current |
13A |
Quantity per Carton (QTY/CTN) |
100Pcs / Carton |
Panel Material |
PC |
Carton Dimensions(L × W × H) |
49cm x 31cm x 19.5cm |
Bottom Material |
Nylon |
Gross Weight (G.W.) |
8.05 |
Metal Material |
Copper |
Net Weight (N.W.) |
7.05 |
Detailed Description:

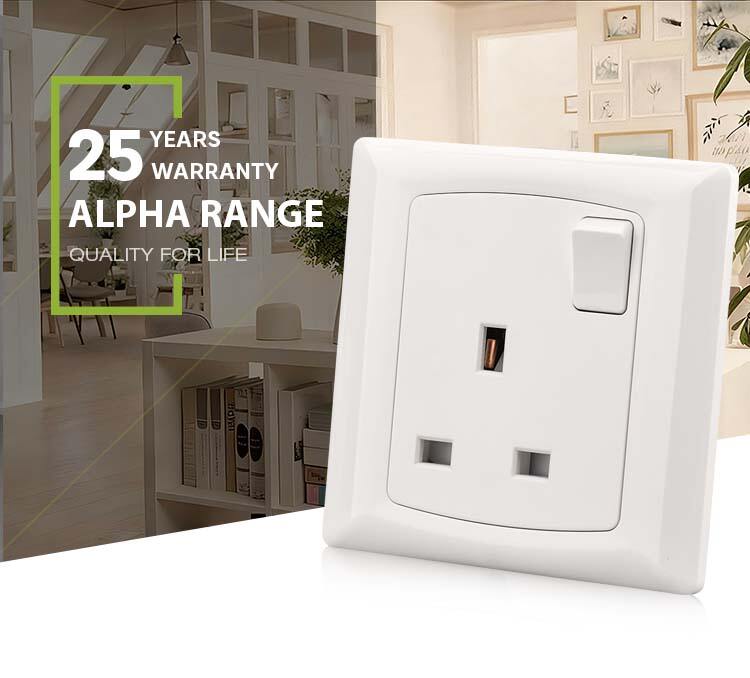

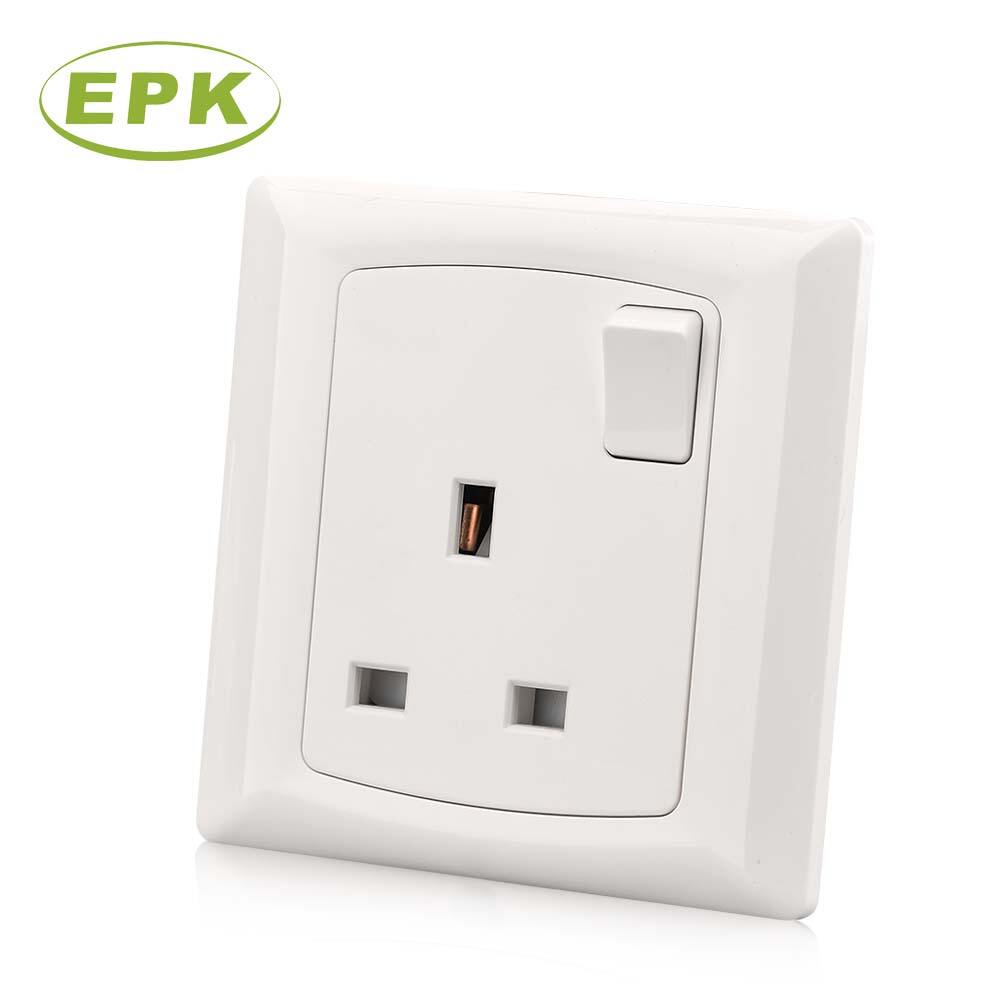

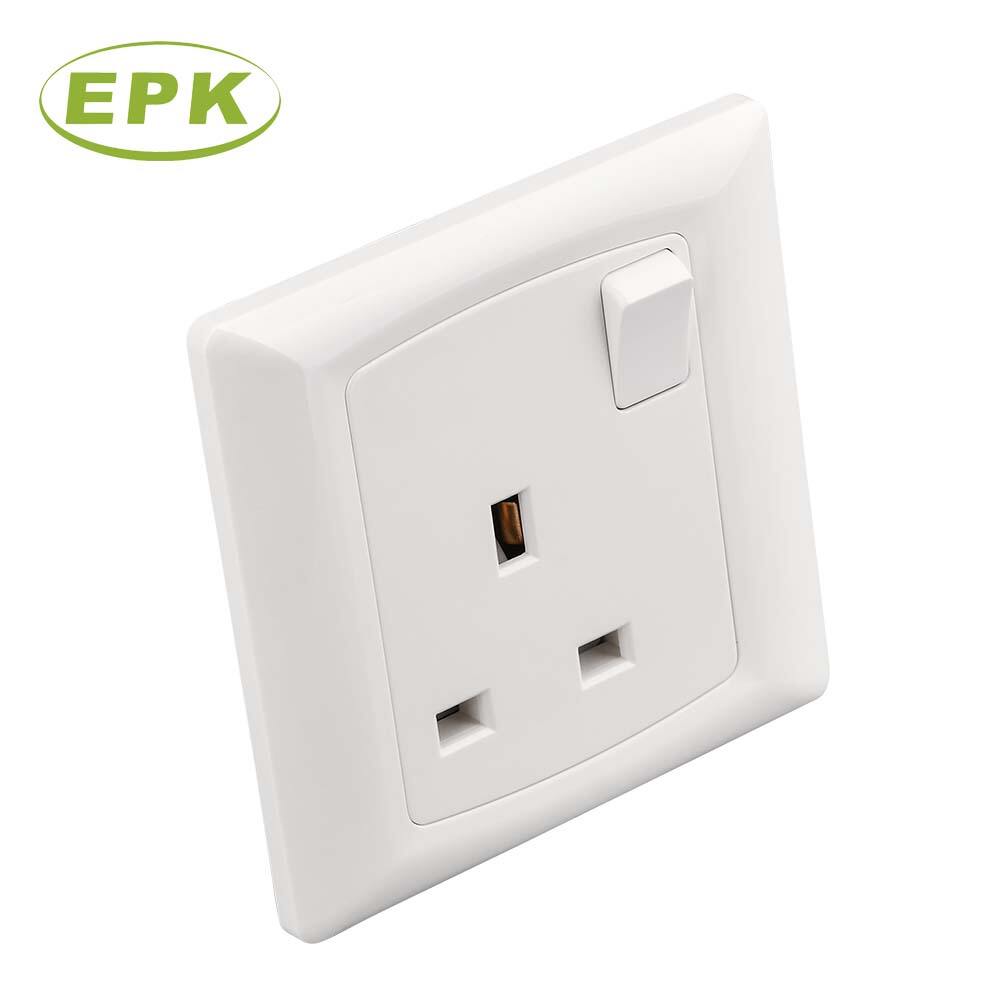

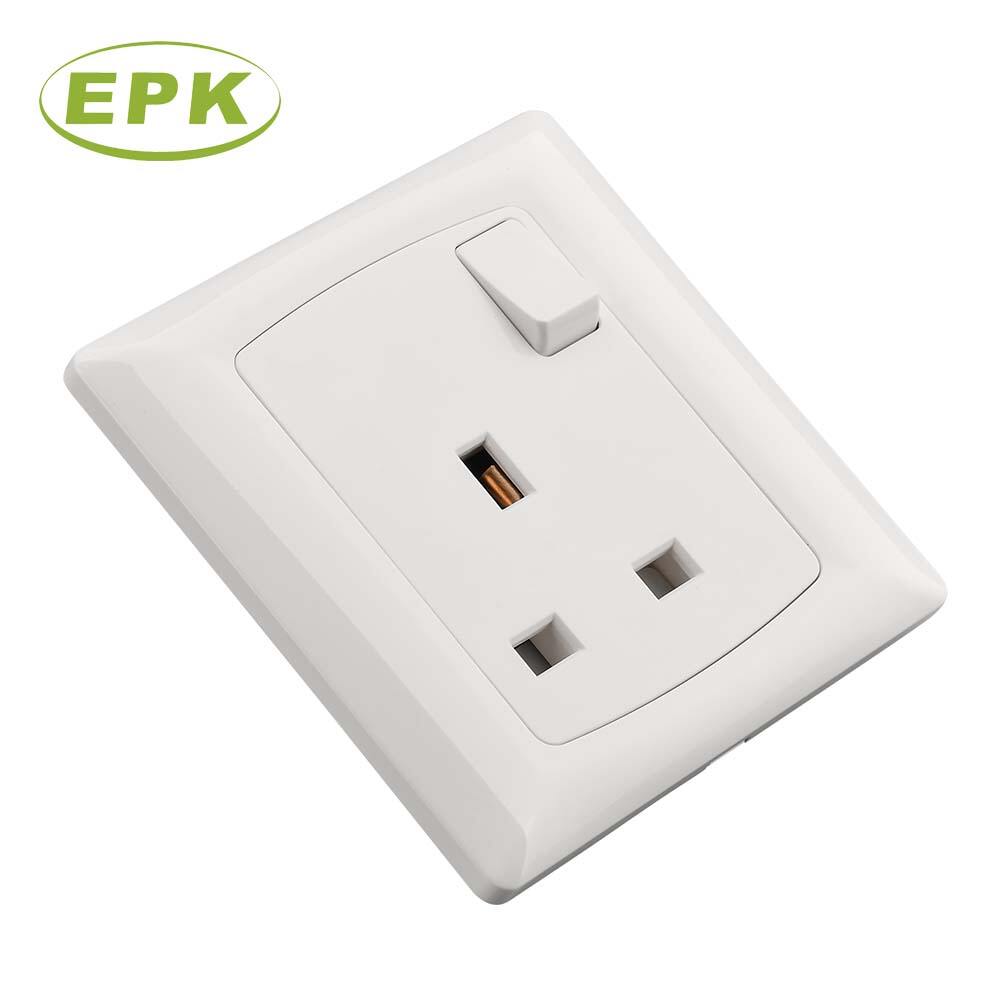

· 8613S Alpha 13A Switched Socket
The 8613S Alpha Series 13A Switched Socket from Zhejiang Neochi Electric Co., Ltd. is a premium single-gang wall outlet specifically designed to meet the rigorous safety and performance standards of the BS 1363 specification (UK Standard). This product features an integrated switch, offering users immediate power control and enhanced safety.
Durability and High-Quality Materials:

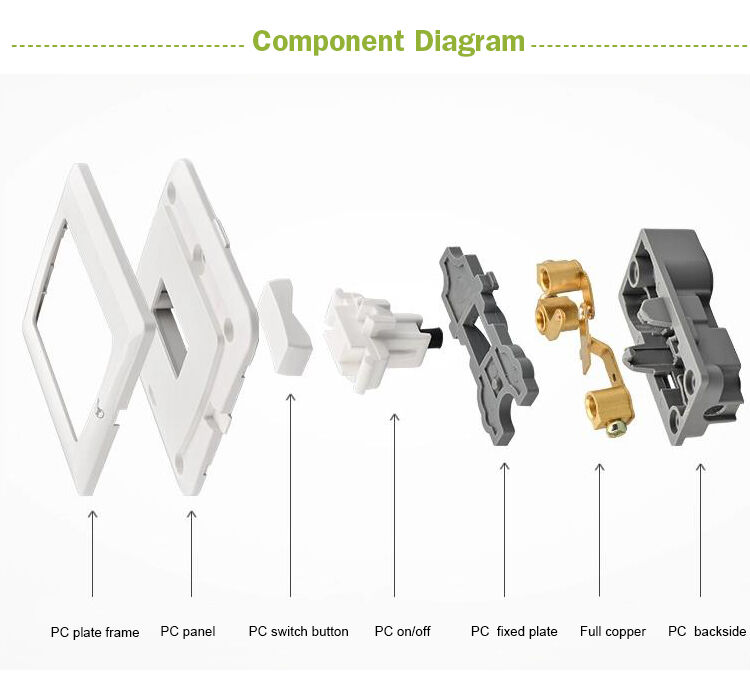

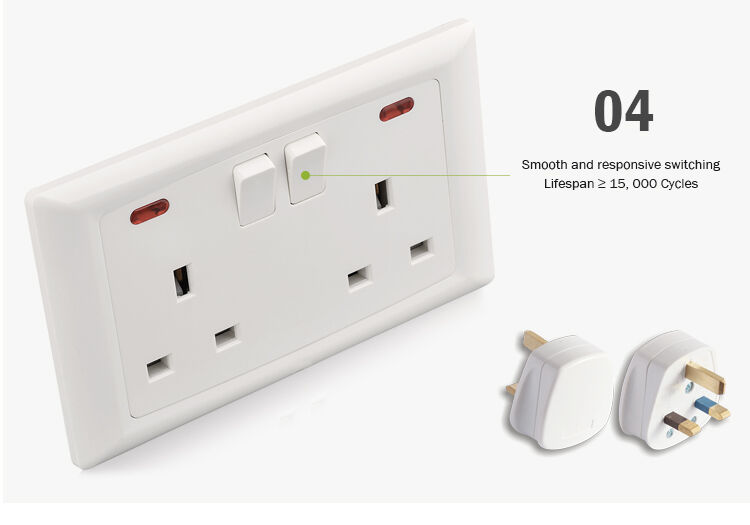

Built for longevity, the socket has a guaranteed operational lifespan of $\ge 15,000$ Cycles, far exceeding typical requirements. The modern, smooth panel is made from high-impact and fire-resistant PC (Polycarbonate) material in a clean White finish, ensuring the product remains aesthetically pleasing and safe over time. The structural integrity is provided by a sturdy back box made of insulating Nylon. The critical internal components, including high-tension contacts and terminals, are made from highly conductive Copper metal to ensure stable power flow and minimize heat generation.
Safety and Installation:

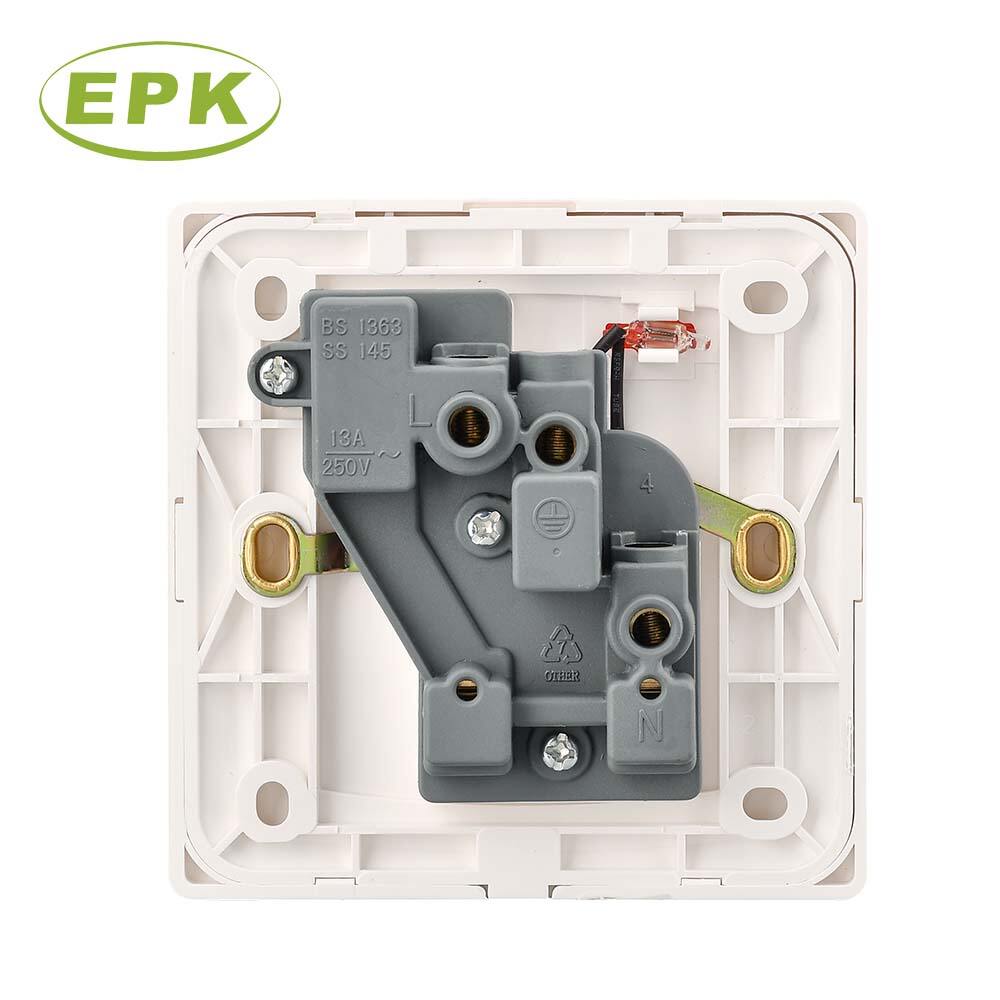

The socket adheres strictly to the BS 1363 standard, ensuring mandatory shuttered safety features are incorporated to prevent unauthorized access to live terminals. The Screwed Installation method, utilizing a sturdy metal mounting plate (visible on the reverse), guarantees a secure and reliable fixture into standard wall boxes, providing peace of mind for both installers and end-users.
Application Scenarios:
The 8613S switched socket is essential for any market that adopts the British Standard (BS 1363), including the UK, Ireland, Hong Kong, Singapore, Malaysia, and parts of the Middle East and Africa.
· Residential Housing: Serving as the standard power outlet for all modern homes and apartments.
· Commercial Offices: Providing safe and controlled power points for workstations, IT equipment, and general office appliances.
· Hospitality Sector (Hotels & Resorts): Used in guest rooms and public areas to meet local regulatory and safety standards.
· Industrial Light Duty: Suitable for workshops, laboratories, and educational institutions where reliable 13A power is required.
· Export and Overseas Projects: Ideal for contractors and developers working on international projects that specify BS-compliant accessories.
Competitive Advantage:
Zhejiang Neochi Electric Co., Ltd. offers a compelling partnership based on decades of quality manufacturing and market expertise.
1. Global Quality Standard Compliance: We enforce rigorous quality control from raw material selection to shipment. Our commitment is demonstrated by adherence to ISO9000:2012 and key certifications like CE, SONCAP, TBS, BV, SGS, and CCIC. We validate quality in our CNAS standard electrical testing laboratory.
2. Proven Reliability and Scale: As an experienced manufacturer with over 30 years in the industry, we have a strong track record, with annual sales exceeding $16 million in 2024. We are recognized as an AEO Certified Enterprise by China Customs.
3. Advanced Technology and Manufacturing: We are focused on modernization and efficiency, implementing large-scale automation and smart upgrades in alignment with "Made in China 2025". This technological edge ensures cost-effectiveness and consistent product quality.
4. Complete R&D and Customization Services: Our professional R&D team holds numerous patents (5 Invention, 9 Utility Model, 6 Design) and is fully equipped to provide extensive OEM and ODM customization services.
5. One-Stop Building Solution: We provide a comprehensive range of building electrical accessories, offering a full-spectrum solution for the entire industry chain.
We sincerely welcome global partners to collaborate for a long-term, mutually beneficial, and win-win relationship.
Zhejiang Neochi Electric Co., Ltd. is a quality-oriented manufacturer with over 30 years of expertise in the electrical industry. Equipped with advanced production facilities and a highly skilled workforce, we specialize in manufacturing and supplying electrical switches, sockets, and key components for intelligent electrical control systems. Our products are exported globally and have earned widespread recognition for their outstanding quality and dependable after-sales service. With a professional R&D team, we also provide comprehensive OEM and ODM services.
Q1: Who are we?
A1: We are a quality-oriented enterprise with over 30 years’ manufacturing experience of low-voltage electrical products. At present, our products have been exported to more than 10 countries and have obtained required certificates in various markets. Our brands’ market share remains top three in their market. We will continue to serve more clients and grow together with them.
Q2: Can I have free samples before bulk ordering?
A2: Sure, we can provide free samples for testing or inspection.
Q3: How long does the delivery usually take?
A3: Sample orders usually take 7 days; 1x20'ft container orders usually take 30-45 days.
Q4: How long is the guaranteed time?
A4: 2 years for electronic products; 25 years for mechanical products.
