Premium Alpha Series 45A Cooker Control Unit with 13A Switched Socket and Neon Indicators (Model 2648L) - Double Gang, White PC Panel, Copper Contacts, BS 4177 Standard Compliant | Heavy-Duty Wall Mounted Cooker Switch for High-Power Kitchen Appliances |
- Overview
- Recommended Products
Model Number |
2648L |
Range |
Alpha |
Installation Method |
Screwed |
Lifespan |
≥5, 000 Cycles |
Type |
45A Cooker Unit with Light |
Color |
White |
Dimensions (L × W × D) |
146mm x 86mm x 30.9mm |
Standard (Compliance) |
BS 4177 |
Rated Voltage |
220-250V |
Packaging |
1Pc/Nylon Bag, 5Pcs /Box, 10Boxes/Carton |
Rated Current |
45A |
Quantity per Carton (QTY/CTN) |
50Pcs / Carton |
Panel Material |
PC |
Carton Dimensions(L × W × H) |
49cm x 31cm x 19.5cm |
Bottom Material |
Nylon |
Gross Weight (G.W.) |
10.08 |
Metal Material |
Copper |
Net Weight (N.W.) |
9.08 |
Detailed Description:
Integrated High-Current Control and Safety

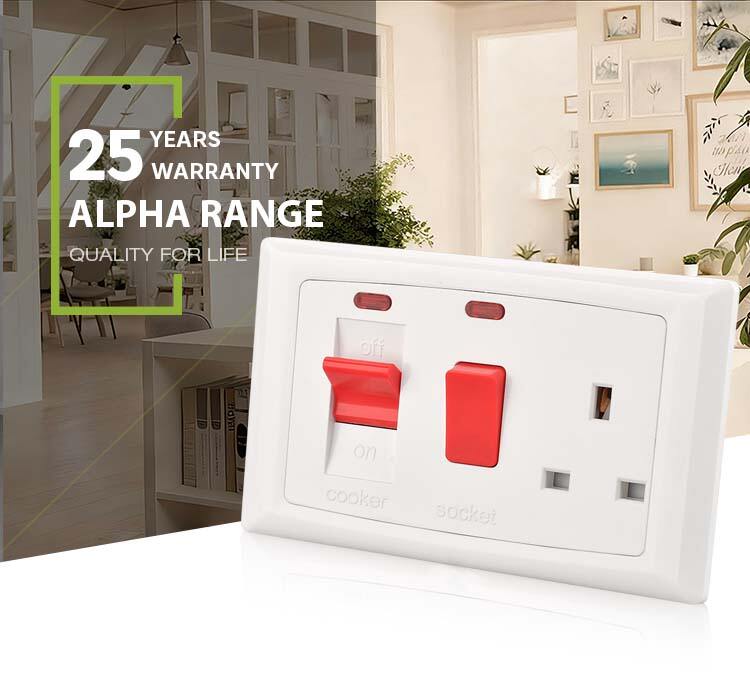

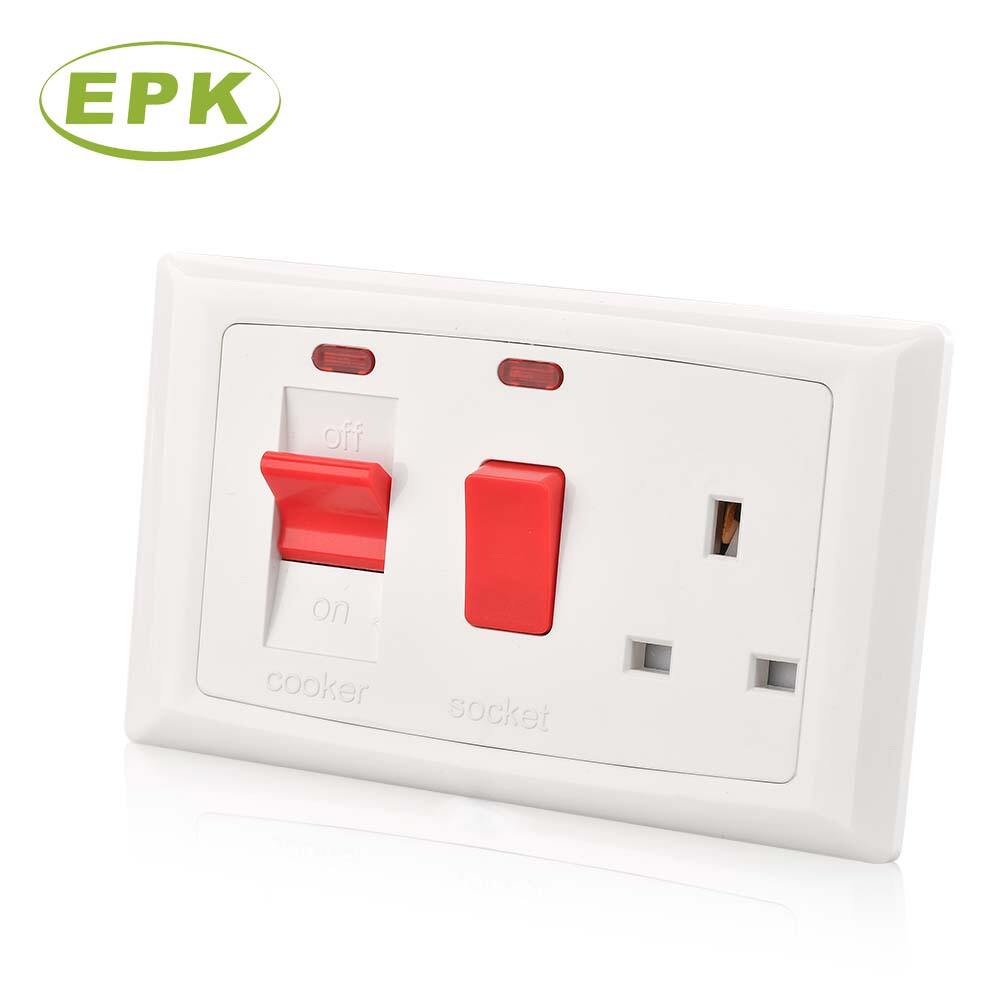

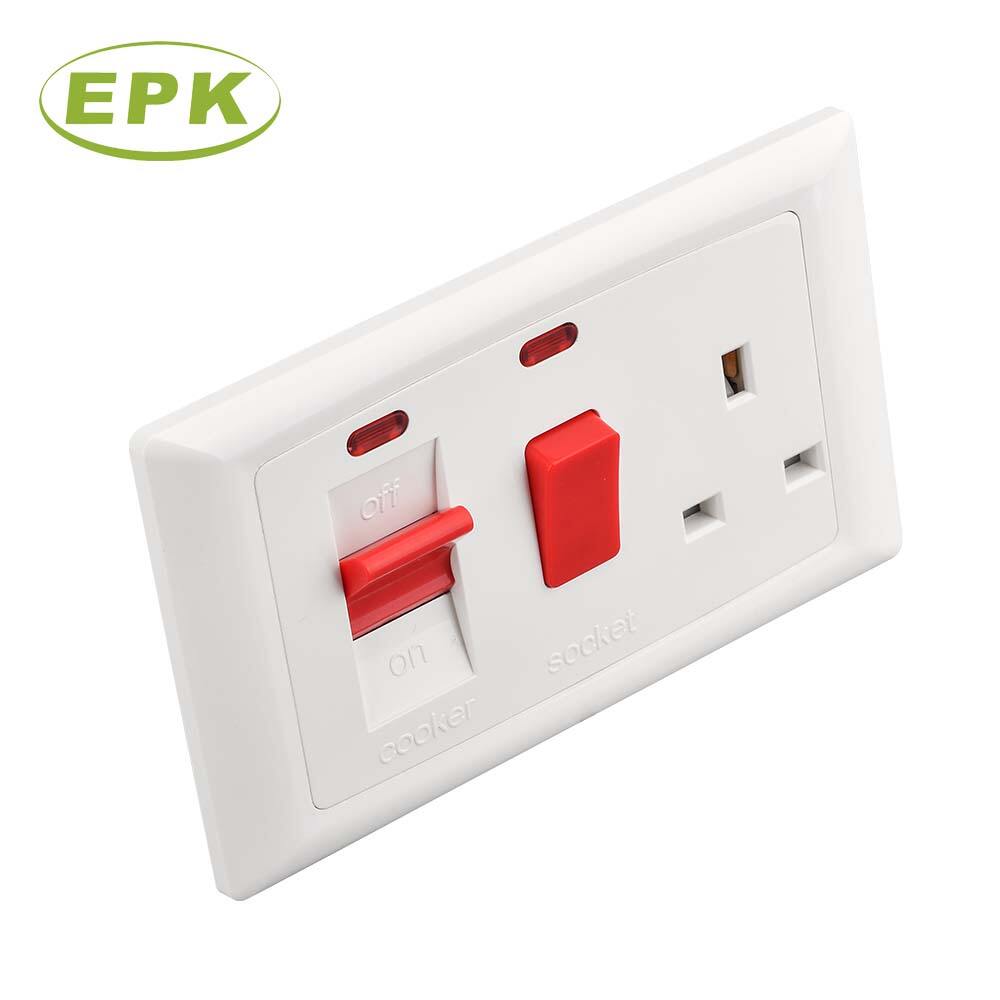

The 2648L Alpha Series 45A Cooker Control Unit with Light is a sophisticated, heavy-duty electrical device specifically designed to safely manage the power supply for high-demand kitchen appliances, such as electric cookers, ovens, and hobs. This dual-function unit combines a robust 45A Double Pole (D.P.) switch for the main cooker load and an integrated 13A switched socket for general appliance use, providing a comprehensive power solution in one compact unit.
The main 45A D.P. switch utilizes a mandatory double pole mechanism, ensuring complete isolation by simultaneously disconnecting both the live and neutral lines when the switch is in the "OFF" position. This critical safety feature minimizes the risk of electrical faults and shocks in high-power environments. Both the 45A cooker switch and the 13A auxiliary socket are equipped with clear neon indicator lights to provide immediate and unambiguous visual confirmation of their power status, significantly enhancing user safety and convenience.
This product boasts exceptional build quality and material selection:
· Dimensions: 146mm times 86mm times 30.9mm.
· Voltage/Current: Rated Voltage 220-250V; Rated Current 45A (Cooker Switch).

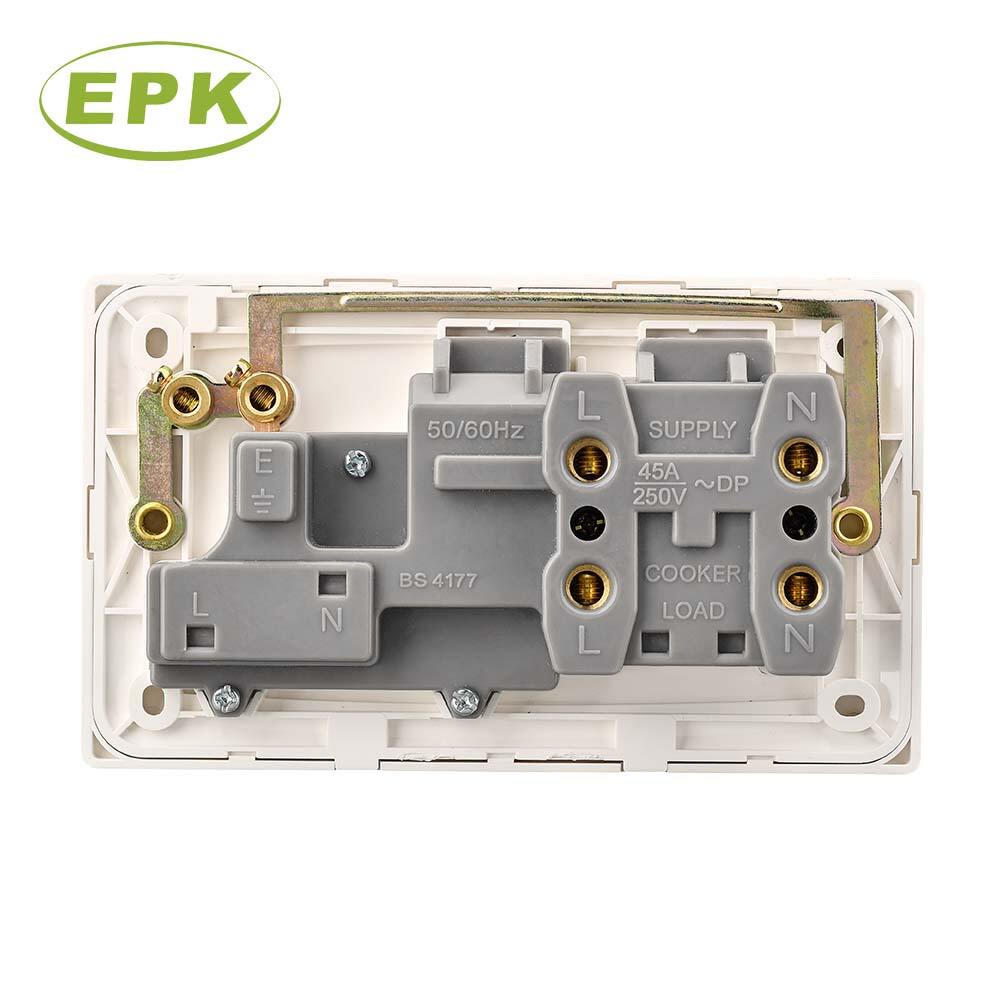

· Materials: The fascia panel is constructed from high-quality PC (Polycarbonate) for its superior durability, heat resistance, and easy-to-clean white finish. The internal base is made from insulating Nylon, and all critical contact points and terminals feature pure Copper, ensuring maximum conductivity and minimal heat generation under full 45A load.
· Compliance: The unit conforms strictly to the BS 4177 standard, meeting the rigorous requirements for cooker control units in the UK and international markets.
· Durability: Rigorous testing certifies a mechanical lifespan of 5,000 Cycles, guaranteeing long-term, reliable performance.
Application Scenarios:
The Modern Kitchen Power Hub
The 2648L Cooker Control Unit is an indispensable part of modern kitchen wiring, serving multiple critical functions:
· Primary Cooker Isolation: Provides a safe, dedicated point of isolation for all types of electric cookers, ovens, and hobs, complying with electrical safety regulations.
· Integrated Auxiliary Power: The adjacent 13A switched socket offers convenient power access for supplementary kitchen appliances such as blenders, toasters, food processors, or kettles, eliminating the need for an additional wall socket nearby.
· Domestic and Commercial Use: Ideal for new residential installations, renovations, apartments, and suitable for light commercial kitchen settings where robust and reliable power control is essential.
· Screwed Installation: Designed for reliable, secure, screwed wall mounting installation.
Competitive Advantage:
Zhejiang Neochi's Commitment to Excellence
By partnering with Zhejiang Neochi Electric Co., Ltd. (EPK), you benefit from our advanced manufacturing capabilities and unwavering commitment to quality2.
1. Dual-Standard Compliance and Safety: The combination of a heavy-duty 45A D.P. switch and a 13A auxiliary socket, both conforming to the stringent BS 4177 standard, provides a complete and safe power solution. The D.P. isolation mechanism is a critical safety differentiator.
2. Superior Component Quality: We insist on using high-quality PC and Nylon for structural integrity and pure Copper for metal components, which enhances electrical performance and guarantees the tested lifespan of 5,000 cycles.
3. Advanced In-House R&D and Testing: Our company features an industry-leading electrical testing laboratory built to CNAS standards3. This capability ensures rigorous product validation and supports our professional R&D team in offering comprehensive OEM and ODM customization services4.
4. Established Industry Authority and Reliability: With over thirty years of industry experience and being recognized as a "National High-tech Enterprise" and an "AEO Certified Enterprise"5, we maintain a stable and reliable supply chain. Our manufacturing processes adhere to the ISO 9000:2012 quality management system6.
5. Smart Manufacturing Investment: We are actively implementing automation and intelligent upgrades in line with the "Made in China 2025" vision, ensuring production efficiency, consistent quality, and technological leadership in the electrical accessories sector7.
Zhejiang Neochi Electric Co., Ltd. is a quality-oriented manufacturer with over 30 years of expertise in the electrical industry. Equipped with advanced production facilities and a highly skilled workforce, we specialize in manufacturing and supplying electrical switches, sockets, and key components for intelligent electrical control systems. Our products are exported globally and have earned widespread recognition for their outstanding quality and dependable after-sales service. With a professional R&D team, we also provide comprehensive OEM and ODM services.
Q1: Who are we?
A1: We are a quality-oriented enterprise with over 30 years’ manufacturing experience of low-voltage electrical products. At present, our products have been exported to more than 10 countries and have obtained required certificates in various markets. Our brands’ market share remains top three in their market. We will continue to serve more clients and grow together with them.
Q2: Can I have free samples before bulk ordering?
A2: Sure, we can provide free samples for testing or inspection.
Q3: How long does the delivery usually take?
A3: Sample orders usually take 7 days; 1x20'ft container orders usually take 30-45 days.
Q4: How long is the guaranteed time?
A4: 2 years for electronic products; 25 years for mechanical products.
