Premium White Bakelite 45A Double Pole Cooker Control Unit with 13A Switched Socket and Neon Indicators (Model 2548L) | 86mm x 146mm | 250V | BS 4177 Certified Cooker Switch Isolator for Kitchen Appliances
- Overview
- Recommended Products
| Model Number | 2548L | Range | Legend |
| Installation Method | Screwed | Lifespan | ≥5, 000 Cycles |
| Type | 45A D.P. Cooker Unit | Color | White |
| Dimensions (L × W × D) | 86mm x 146mm x 29.2mm | Standard (Compliance) | BS 4177 |
| Rated Voltage | 220-250V | Packing | 1Pc/Nylon Bag, 5Pcs /Box, 10Boxes/Carton |
| Rated Current | 45A | Quantity per Carton (QTY/CTN) | 50Pcs / Carton |
| Panel Material | Bakelite | Carton Dimensions(L × W × H) | 49cm x 32.5cm x 19.4cm |
| Bottom Material | Nylon | Gross Weight (G.W.) | 21.7 |
| Metal Material | Copper | Net Weight (N.W.) | 20.7 |
Detailed Description:

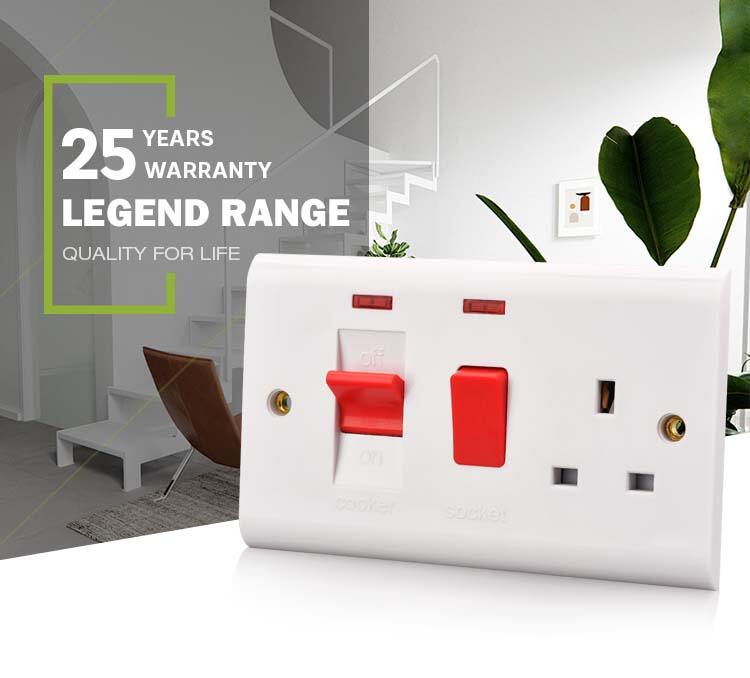

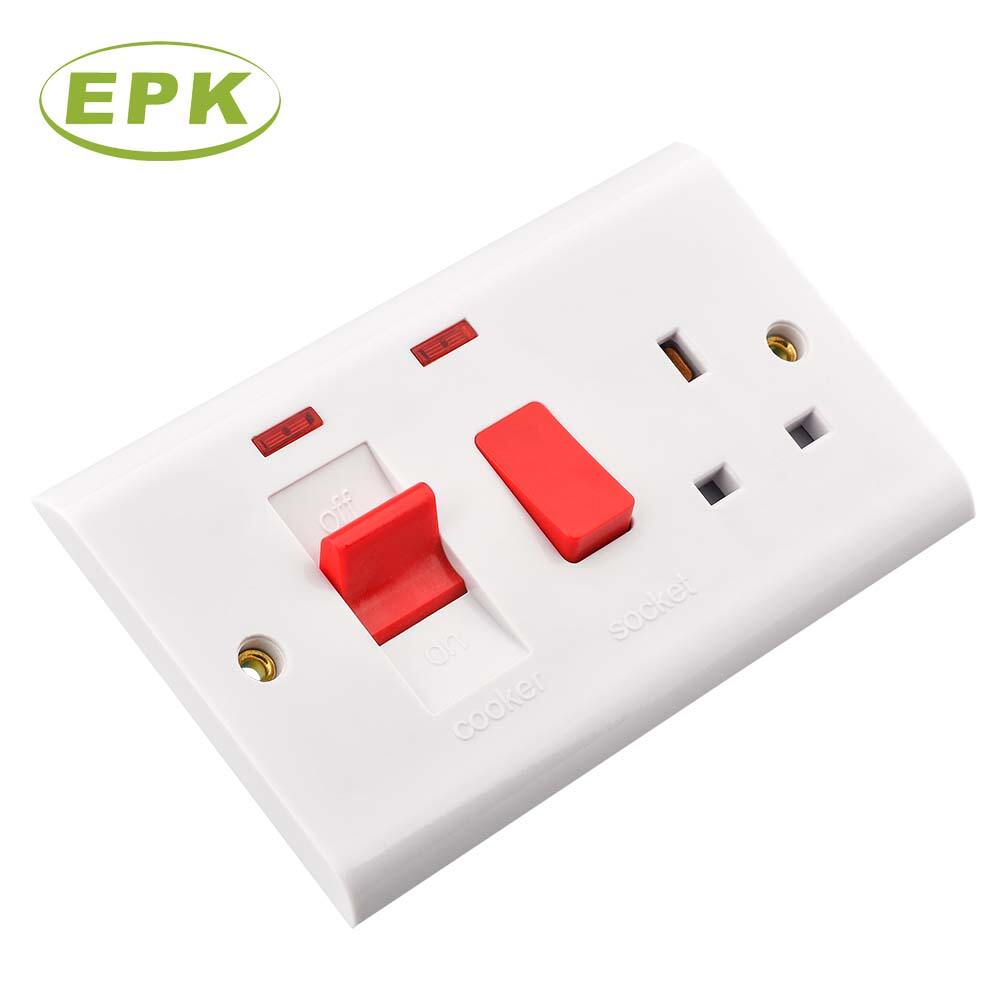

Introducing the Model 2548L 45A Double Pole Cooker Control Unit, the ultimate safety and convenience solution for managing high-power kitchen appliances. Manufactured by Zhejiang Neochi Electric Co., Ltd., a specialist with over thirty years of deep industry experience1, this double-gang unit is engineered to meet the most stringent safety requirements for modern kitchens.
Dual Functionality for Kitchen Safety:
This control unit integrates two essential functions into a single, standards-compliant housing:

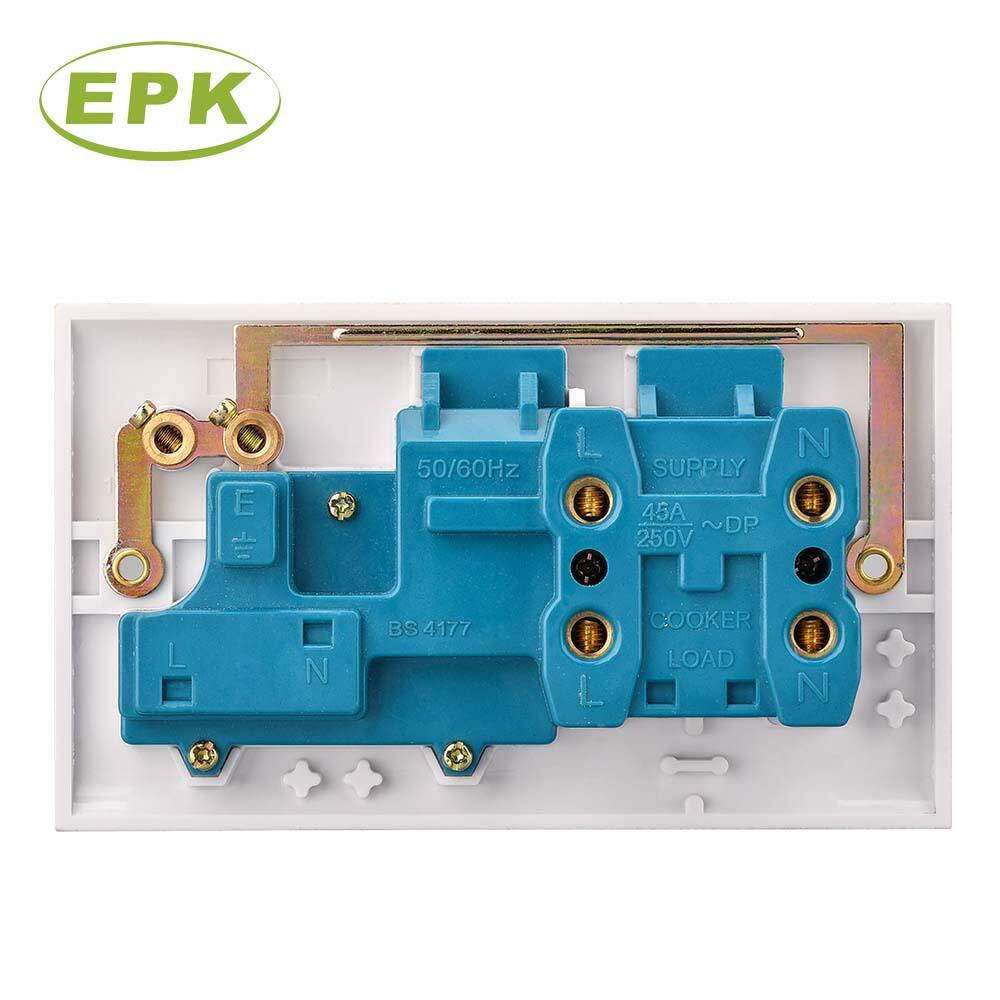

1. 45A Double Pole (D.P.) Switch: Designed to isolate the fixed electric cooktop or oven circuit. The D.P. mechanism ensures absolute safety by simultaneously cutting power on both the live and neutral lines when switched off, adhering to crucial electrical safety codes.
2. 13A Switched Socket: Provides an adjacent, independently controlled standard power outlet for other smaller kitchen appliances, such as mixers, toasters, or kettles.
High-Load Capacity and Compliance:
Rated for a robust 45A current on the main switch and operating at 220-250V, this unit is essential for fixed cooking installations. Full compliance with BS 4177 confirms its suitability and safety for markets adhering to British Standards. The unit's dimensions are 86mm times 146 mm times 29.2mm.
Enhanced Visual Safety:

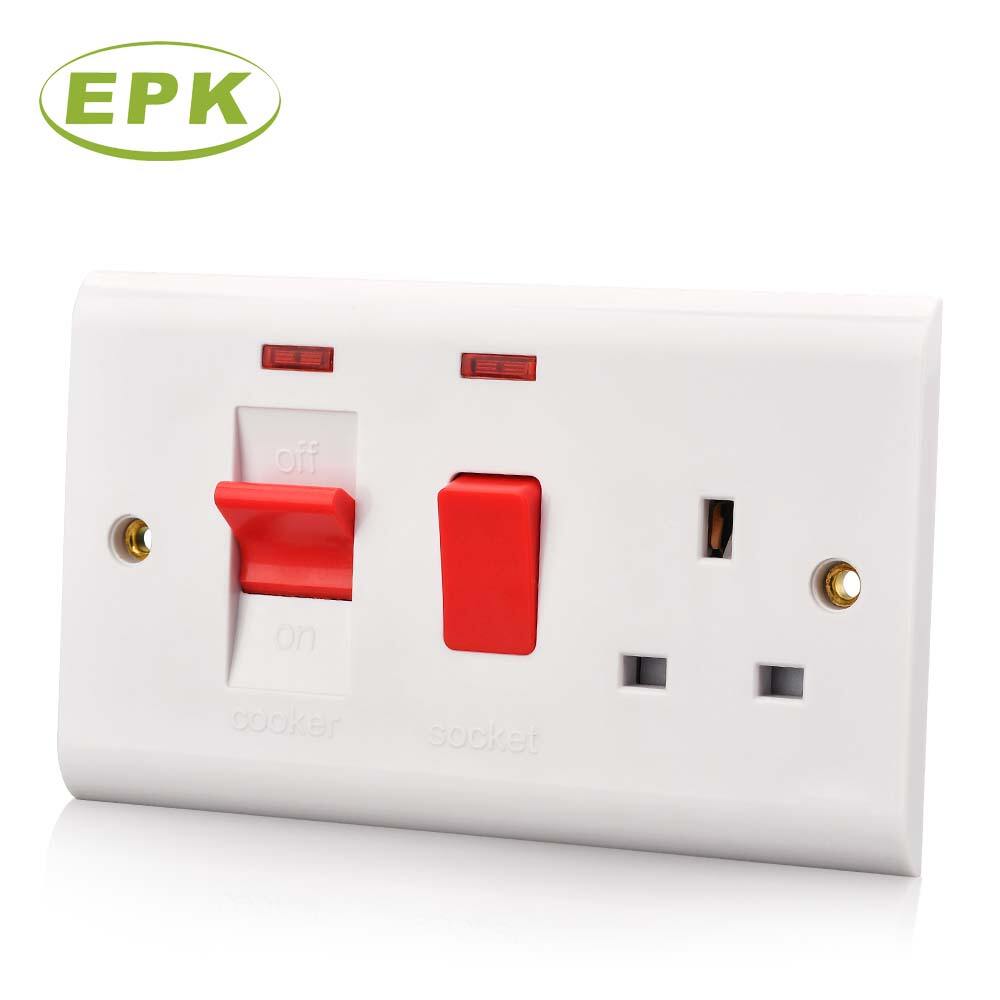

Both the cooker switch and the 13A socket feature independent Neon Indicator Lights, offering clear, immediate visual confirmation of the power status for enhanced user safety and convenience.
Built for Extreme Durability:
The heavy-duty switching mechanism is designed for industrial-level resilience, guaranteeing an operational Lifespan of 5,000 Cycles under maximum load conditions.

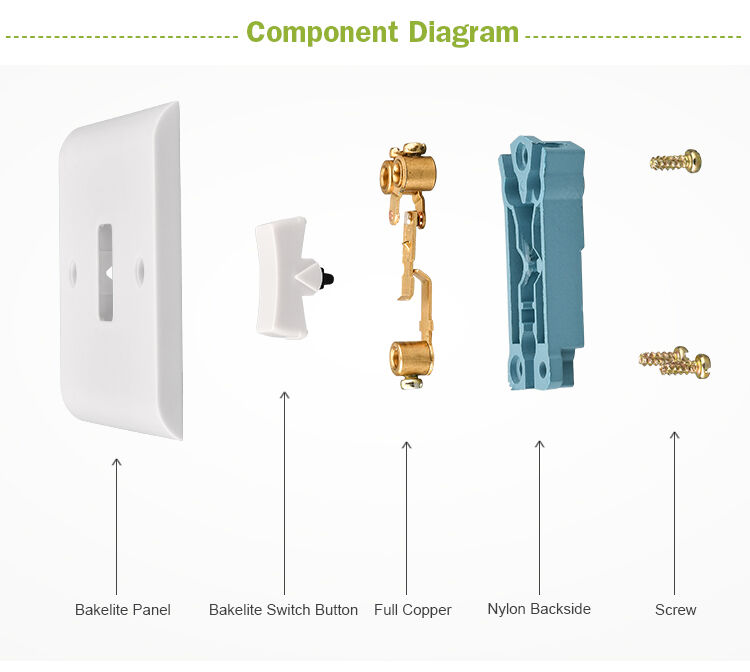

Premium Material Construction:
· Panel Material: Constructed from high-quality Bakelite in a clean White finish. Bakelite provides excellent insulation, fire resistance, and structural stability.
· Bottom Material: The base is made from durable Nylon, offering robust mechanical support and safety.
· Metal Material: All internal contacts and conductors, critical for handling 45A safely, are made from high-purity Copper, ensuring optimal thermal performance and minimal resistance.
· Installation: The unit uses the secure Screwed Installation method.
Application Scenarios:
The Model 2548L Cooker Control Unit is a mandated and necessary component for electrical installations in specific high-demand areas:
· Residential Kitchens: The standard fitting for the electrical control and isolation of electric ovens, cooktops, and ranges in all homes requiring BS standards compliance.
· Small Commercial Kitchens: Ideal for restaurants, cafes, or bakeries using fixed electric cooking equipment, providing essential isolation for maintenance and emergency cut-off.
· New Building Projects: A critical component for contractors and developers in global markets utilizing the BS 4177 standard, ensuring immediate regulatory compliance.
· Appliance Retail and Service: A high-value replacement unit for service technicians and retailers dealing with heavy-duty kitchen appliances.
Competitive Advantage:
By selecting Zhejiang Neochi Electric Co., Ltd., you gain a partner distinguished by technological excellence and certified global trade capability:
· Certified Quality and Testing: We maintain the effective implementation of the ISO9000:2012 quality management system and operate an industry-leading electrical testing laboratory built to CNAS standards. This ensures robust verification of high-amperage product safety and performance.
· High-Tech and Efficient Production: We are a "National High-tech Enterprise" and are actively engaged in the large-scale automation and intelligent transformation of our production lines , aligning with the "Made in China 2025" vision. This guarantees precision manufacturing and cost-competitive sourcing.
· Superior Trade Credentials: Our distinguished status as a China Customs "AEO Certified Enterprise" and a 'Class I Enterprise' by the Entry-Exit Inspection and Quarantine Bureau significantly streamlines international logistics and provides partners with high reliability in trade.

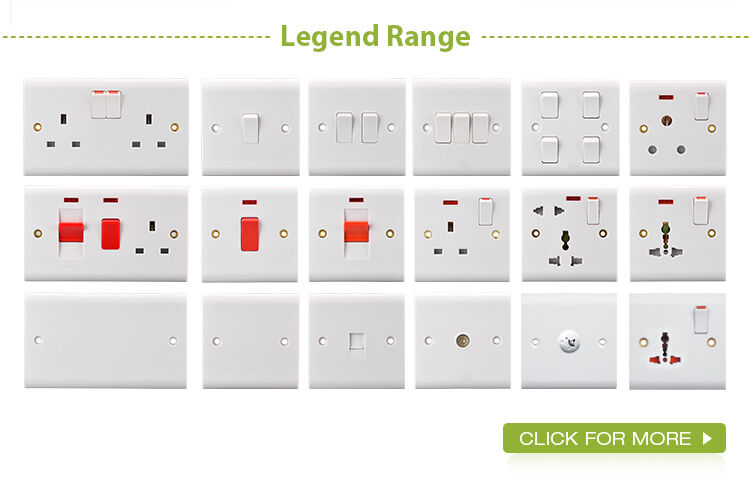

· Comprehensive Product Portfolio: Our extensive range covers over 12 major series and 200 models of electrical accessories. We offer complete OEM and ODM customization services , aiming to provide a one-stop comprehensive solution for the entire building electrical industry chain.

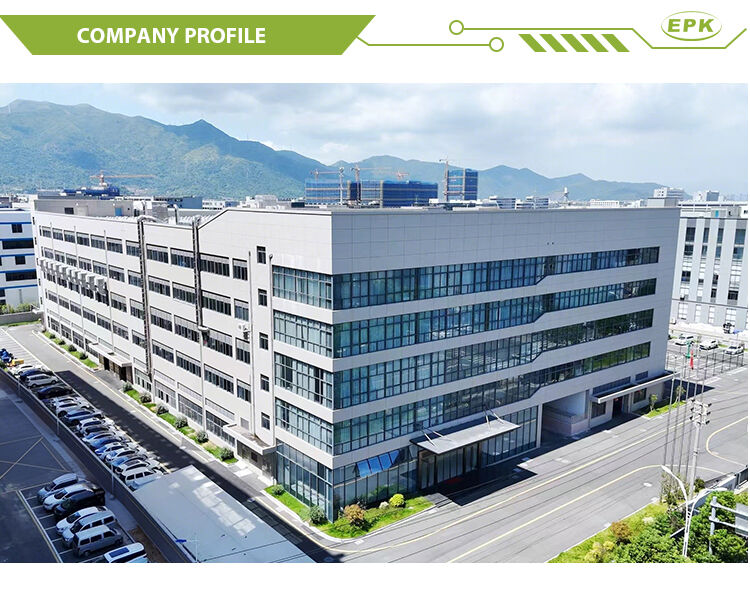

Zhejiang Neochi Electric Co., Ltd. is a quality-oriented manufacturer with over 30 years of expertise in the electrical industry. Equipped with advanced production facilities and a highly skilled workforce, we specialize in manufacturing and supplying electrical switches, sockets, and key components for intelligent electrical control systems. Our products are exported globally and have earned widespread recognition for their outstanding quality and dependable after-sales service. With a professional R&D team, we also provide comprehensive OEM and ODM services.
Q1: Who are we?
A1: We are a quality-oriented enterprise with over 30 years’ manufacturing experience of low-voltage electrical products. At present, our products have been exported to more than 10 countries and have obtained required certificates in various markets. Our brands’ market share remains top three in their market. We will continue to serve more clients and grow together with them.
Q2: Can I have free samples before bulk ordering?
A2: Sure, we can provide free samples for testing or inspection.
Q3: How long does the delivery usually take?
A3: Sample orders usually take 7 days; 1x20'ft container orders usually take 30-45 days.
Q4: How long is the guaranteed time?
A4: 2 years for electronic products; 25 years for mechanical products.
